Home > Copper Nickel > Copper Nickel Instrumentation Tubing

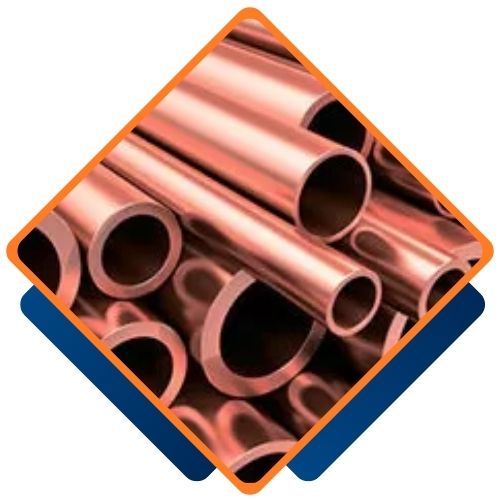

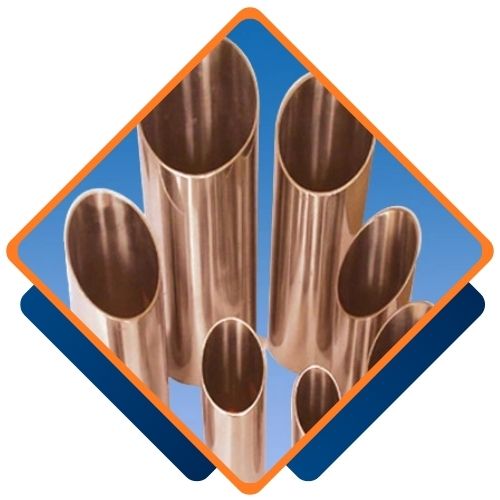

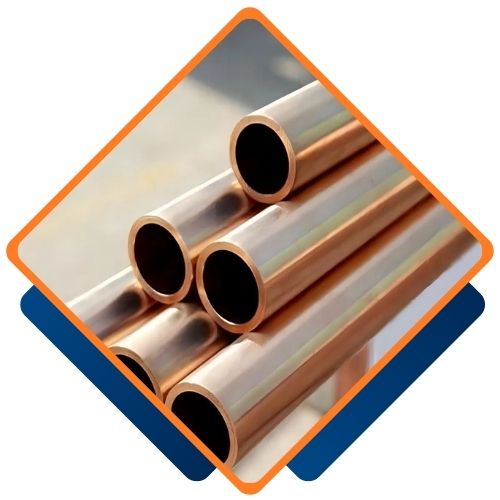

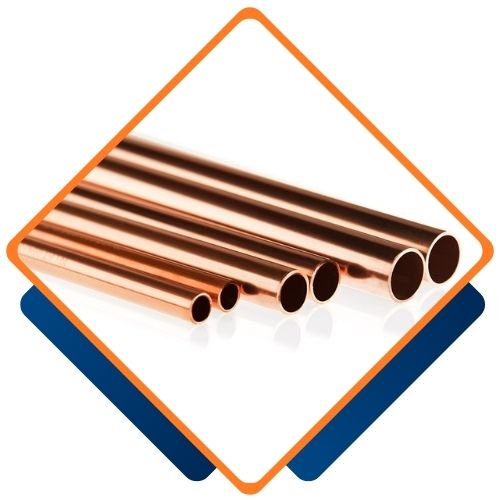

Corazon Pipes and Tubes is a reputed manufacturer and supplier of Copper Nickel Instrumentation Tubing in Manila, Philippines. Known for its superior corrosion resistance and excellent performance in marine and industrial environments, our tubing is crafted with precision to ensure leak-free and reliable operation. The Copper Nickel alloy offers outstanding resistance to seawater, biofouling, and stress cracking, making it ideal for critical fluid transfer and control applications. Corazon’s Copper Nickel Instrumentation Tubing combines durability, flexibility, and consistent performance, serving industries that demand reliability, from offshore platforms to power generation and desalination plants.
Copper Nickel Instrumentation Tubing is primarily composed of copper with 10–30% nickel content, along with small additions of iron and manganese for enhanced strength and corrosion resistance. This alloy offers excellent mechanical properties, including high tensile strength, superior ductility, and thermal stability. It performs exceptionally well in high-pressure and seawater environments, maintaining structural integrity under varying temperatures. The tubing’s resistance to oxidation and erosion ensures long service life, making Copper Nickel an ideal material for precise instrumentation systems exposed to saline or corrosive conditions.
Dimensions : DIN, ASTM, ASME, BS and all International Standards
Grade : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
Size Range : 1/8” to 2” and 2mm to 32mm tube diameter
Working Pressure : up to 6,000psi (based on severity of application)
Available Thread : NPT(ANSI B1.20.1), and ISO thread configurations (BSPT, BSPP)
| Element | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 20000 psi | 30 % |
| Property |
Metric Units |
Imperial Units |
|---|---|---|
|
Melting Point (Liquidus) |
11,500°C |
21,000°F |
|
Melting Point (Solidus) |
11,000°C |
20,100°F |
|
Density |
8.94 gm/cm³ @ 20°C |
0.323 lb/in³ @ 68°F |
|
Specific Gravity |
8.94 |
8.94 |
|
Coefficient of Thermal Expansion |
17.1 x 10 -6 / °C (20-300°C) |
9.5 x 10 -5 / °F (68-392°F) |
|
Themal Conductivity |
40 W/m. °K @ 20°C |
23 BTU/ft³/ft/hr/°F @ 68°F |
|
Thermal Capacity (Specific Heat) |
380 J/kg. °K @ 20°C |
0.09 BTU/lb/°F @ 68°F |
|
Electrical Conductivity (Annealed) |
5.26 microhm?¹.cm?¹ @ 20°C |
9.1% IACS |
|
Electrical Resistivity (Annealed) |
0.190 microhm.cm @ 20°C |
130 ohms (circ mil/ft) @ 68°F |
|
Modulus of Elasticity (tension) |
140 GPa @ 20°C |
20 x 10 6 psi @ 68°F |
|
Modulus of Rigidity (torsion) |
52 GPa @ 20°C |
7.5 x 10 6 psi @ 68°F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Instrumentation Tubing from Corazon Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel Instrumentation Tubing from Corazon Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Instrumentation Tubing to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.

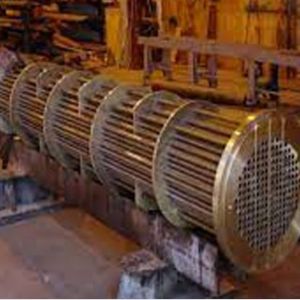

Copper Nickel Instrumentation Tubing is widely used in marine, offshore, and power generation industries due to its exceptional resistance to seawater corrosion and biofouling. It is ideal for control systems, hydraulic lines, heat exchangers, and condensers in desalination plants, chemical refineries, and shipbuilding operations. The tubing’s stability and reliability under extreme conditions make it suitable for transferring fluids, gases, and instrumentation signals. Corazon Pipes and Tubes provides high-quality Copper Nickel tubing that ensures leak-proof performance and durability, supporting critical applications where long-term reliability and corrosion resistance are essential.
