Home > Copper Nickel > Copper Nickel 90/10 Tubing
In the bustling industrial landscape of Manila, Corazon Pipes and Tubes has established itself as a trusted source for high-performance materials, with a special focus on the demanding marine and energy sectors. We take pride in supplying top-tier Copper Nickel 9010 tubing, a product chosen for its superior strength and remarkable resilience in even the most challenging saltwater environments. Our commitment is to provide not just a product, but a reliable solution that ensures the longevity and safety of critical systems for our partners across the Philippines and beyond.
At its heart, this tubing is an alloy of about 90% copper and 10% nickel, a specific blend that gives it a distinct edge. This composition is key to its impressive mechanical properties, offering excellent tensile strength and good ductility, which makes fabrication and installation more straightforward. Most importantly, the addition of nickel dramatically boosts its resistance to corrosion, especially against seawater and brine, while also providing strong protection against biofouling, making it a durable and long-lasting choice for critical applications.
Specification : ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Wall Thickness : Between 0.15mm and 1.50 mm
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Product Property | US Customary |
|---|---|
| Coefficient of Thermal Expansion | 9.5 10−6Per °F (68-572 F) |
| Density | 0.323 lb/in3 at 68 F |
| Electrical Conductivity | 9 %IACS @ 68 F |
| Electrical Resistivity | 115.0 ohms-cmil/ft @ 68 F |
| Melting Point – Liquidus | 2100 F |
| Melting Point – Solidus | 2010 F |
| Modulas of Elasticity in Tension | 18000 ksi |
| Modulus of Rigidity | 6800 ksi |
| Specific Gravity | 8.94 |
| Specific Heat Capacity | 0.09 Btu/lb/°F at 68 F |
| Thermal Conductivity | 26.0 BTU in/hr.ft2.°F @ 68 F |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel 90/10 Tubing from Corazon Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Choose Copper Nickel 90/10 Tubing from Corazon Pipes and Tubes for its superior seawater corrosion resistance, biofouling protection, and excellent thermal conductivity, making it ideal for marine, industrial, and coastal applications requiring long-lasting performance and reliability.
| Outer Diameter) Sizes | Wall Thk. |
|---|---|
| 3/16″, 1″, 1 5/8″, 3/8″, 16″, 7/8″, 5/16″, 1 1/2″, 7/16″, 1/4″, 2″, 5/8″, 1/2″, 3/4″, 1/8″, 1 1/4″, 2 1/4″ | 0.035 |
| 1/8″ , 3/16″ | 0.016 |
| 1/16″, 1/8″, 3/16″ | 0.010 |
| 1/16″, 1/8″, 1/4″ 3/16″, 3/8″, 5/16″ | 0.020 |
| 1/8″ | 0.012 |
| 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 7/8″, 2″, 2 1/2″, 3″ | 0.083 |
| 1″ | .134 |
| 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/2″, 1 1/4″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ | 0.065 |
| 3 1/2″ | .375 |
| 1/8″, 1/4″ 3/16″, 3/8″, 5/16″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ | 0.028 |
| 3/4″, 1 1/4″, 1″, 1 1/2″, 2″, 3″, 3 1/4″ | .125 |
| 1/2″, 5/8″, 1 1/4″, 1″, 1 1/2″, 2″ | 0.095 |
| 1/2″, 3/4″, 1 1/4″, 1″, 1 1/2″, 2″ | .109 |
| 3″ | .250 |
| 1/2″, 5/8″, 3/4″, 7/8″, 1 1/4″, 1″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ | .120 |
| 1/4″, 3/16″, 3/8″, 5/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/2″, 1 1/4″, 1 5/8″, 2″, 2 1/4″ |
Yes, we offer custom sizes for Copper Nickel 90/10 Tubing to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.

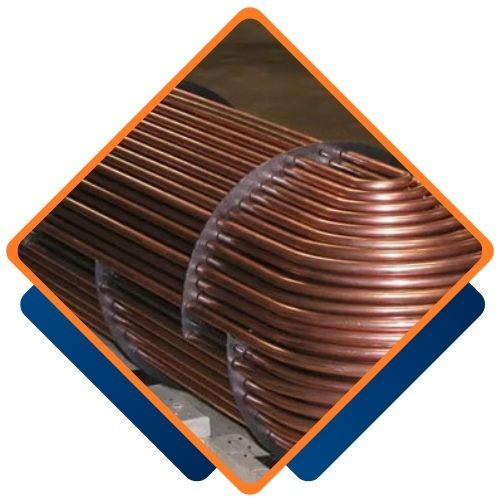

Copper Nickel 90/10 Tubing finds extensive use in marine and offshore settings due to its remarkable resistance to seawater corrosion and biofouling. It’s commonly utilized in shipbuilding for seawater piping, condensers, and cooling systems. In desalination plants, it serves as tubing for evaporators and heat exchangers. This tubing is also well-suited for power generation, chemical processing, and the oil & gas industries, particularly in heat transfer systems that come into contact with corrosive fluids. Its thermal conductivity, weldability, and mechanical strength make it an excellent choice for industrial cooling applications.
