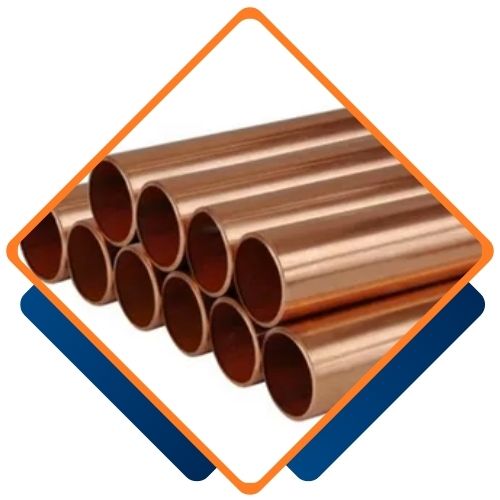

Home > Copper Nickel > Copper Nickel 90/10 Pipes
Operating from the heart of Manila, Corazon Pipes and Tubes is a trusted source for high-performance industrial materials, with a special focus on the exceptional Copper Nickel 9010 pipes. We understand the demanding environments our clients work in, which is why we provide solutions known for their resilience. Our commitment is to supply products that not only meet but exceed expectations, ensuring the integrity and longevity of your most critical projects with reliable, locally-supported service.
At its core, Copper Nickel 9010 is a carefully balanced alloy, primarily composed of about 90% copper and 10% nickel, with small but vital additions of iron and manganese. This specific formulation is what gives these pipes their outstanding resistance to corrosion, especially in aggressive saltwater settings. They also possess excellent mechanical strength and durability, allowing them to perform reliably under high pressures and stress, making them a fundamentally robust choice for challenging applications.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

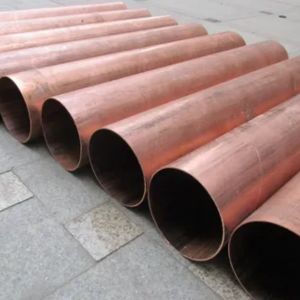

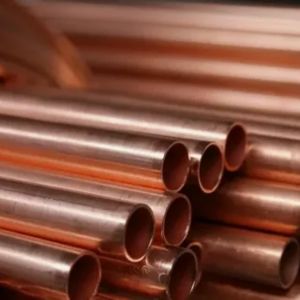

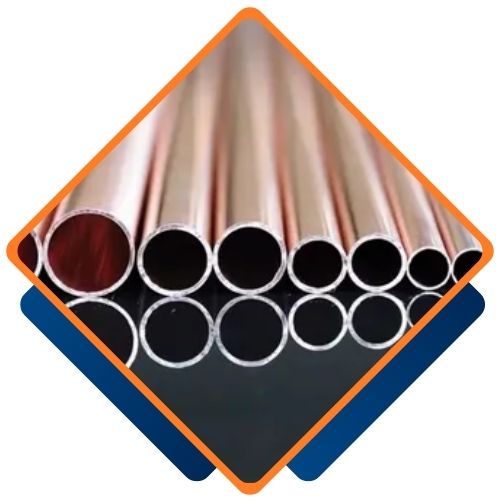

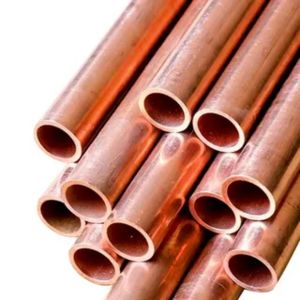

Types : Seamless / ERW / Welded / EFW / Fabricated / CDW
Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel 90/10 Pipes from Corazon Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Pipe is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Corazon Pipes and Tubes, one of the largest suppliers of Copper Nickel 90/10 Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for copper nickel products in the region.
| ASTM B466 C70600 | JIS H 3300 C7060 | BS 2871 CN 102 | DIN 86019 CuNi10Fe1.6Mn 2.1972 | MIL-T-16420K C70600 | EEMUA 234 UNS 7060X | |
|---|---|---|---|---|---|---|
| Fe% | 1.0-1.8 | 1.0-1.8 | 1.0-2.0 | 1.5-1.8 | 1.0-1.8 | 1.5-2.0 |
| Ni% | 9.0-11.0 | 9.0-11.0 | 10.0-11.0 | 9.0-11.0 | 9.0-11.0 | 10.0-11.0 |
| Cu% | Balance | Cu+Ni +Fe+Mn Min.99.5 | Balance | Balance | Min.86.5 | Balance |
| Mn% | Max.1.0 | 0.2-1.0 | 0.5-1.0 | 0.5-1.0 | Max1.0 | 0.5-1.0 |
| Pb% | Max.0.02 | Max.0.05 | Max.0.01 | Max.0.03 | Max.0.02 | Max.0.01 |
| C% | Max.0.05 | Max.0.05 | Max.0.05 | Max.0.05 | Max.0.05 | |
| Zr% | Max.0.03 | |||||
| P% | Max.0.02 | Max.0.02 | Max.0.02 | Max.0.02 | ||
| S% | Max.0.02 | Max.0.05 | Max.0.015 | Max.0.02 | Max.0.02 | |
| Zn% | Max.0.50 | Max.0.50 | Max.0.15 | Max.0.05 | Max.0.20 | |
| Others | Max.0.30 | Max.0.30 | Max.0.30 |
Yes, we offer custom sizes for Copper Nickel 90/10 Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.
| Dimension Tolerance | |||||
| Material | Ultimate Tensile Strength1000 psi (MPa) | Yield Strength 0.5% Ext.under Load 1000 psi (MPa) | YElongation % in 2 in. | Fatigue Strength (10×7 cycles) 1000 psi (MPa) | Burst Pressure* 1000 psi (MPa) |
| Copper-brazed Steel | 48-55 (0.330-0.380) | 28-34 (0.190-0.235) | 30-40 | 30 (0.210) | 19.5 (0.135) |
| C12200-Phosphorus deoxidized Copper | 32-38 (0.220-0.265) | 10-14 (0.070-0.100) | 45-60 | 10 (0.070) | 12 ( 0.083) |
| C70600-Copper Nickel 90-10 | 48-54 (0.330-0.370) | 16-22 (0.110-0.150) | 40-55 | 15 (0.100) | 19 (0.130) |
Copper Nickel 90/10 Pipes find their primary use in marine and offshore applications, thanks to their outstanding resistance to seawater corrosion and biological fouling. They are commonly utilized in seawater cooling systems, ballast water lines, firefighting pipelines, and bilge and sanitary systems on ships and offshore platforms. In desalination plants, these pipes are essential for brine heaters, evaporator tubing, and condensers. The alloy’s durability and ease of welding also make it a great choice for heat exchangers, power plants, and chemical processing units.
