Home > Copper Nickel > Copper Nickel 70/30 Tubing
For manufacturers and engineers in Manila and beyond who demand resilience against the sea, Corazon Pipes and Tubes stands as a trusted partner. Based right here in the Philippines, we specialize in supplying robust materials built for challenging environments, with our Copper Nickel 7030 tubing being a prime example. This particular alloy is engineered to offer superior performance where it matters most, providing a reliable solution for projects that cannot afford compromise, especially in our coastal setting. We take pride in delivering quality that withstands the test of time and the elements.
The strength of Copper Nickel 7030, or CuNi 70/30, lies in its thoughtful composition, primarily a blend of 70% copper and 30% nickel. This combination is enhanced with small but crucial additions of iron and manganese, which work together to significantly boost its resistance to corrosion and erosion. The result is a tubing material that is not only exceptionally durable but also maintains excellent mechanical properties, including high tensile strength and good ductility, allowing it to perform reliably under pressure and in demanding service conditions.
Specification : ASTM B466, B467, B111 / ASME SB466, SB467, SB111
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Wall Thickness : Between 0.15mm and 1.50 mm
Type : Seamless / ERW / Welded / Fabricated Pipes
Form : Round, Square, Rectangular, Oval, Hydraulic Etc
Length : Single Random, Double Random & Required Length
End : Plain End, Beveled End, Treaded
Schedule : SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Inspection, Test Reports : Mill Test Certificates, EN 10204 3.1, Chemical Reports, Mechanical Reports, PMI Test Reports, Visual Inspection Reports, Third Party Inspection Reports, NABL Approved Lab Reports, Destructive Test Report, Non Destructive Test Reports
Packing : Packed in Wooden Boxes, Plastic Bags, Steel Strips Bundled, or as per Customers Requests
Specials : Sizes and Specifications other than above can be manufactured on request
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
|---|---|---|---|---|---|---|
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 372-517 MPa | 54000-75000 psi |
| Tensile strength, yield (depending on temper) | 88.0-483 MPa | 12800-70100 psi |
| Elongation at break (in 381 mm) | 45.0% | 45.0% |
| Charpy impact | 107 J | 78.9 ft-lb |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 57.0 GPa | 8270 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 150 GPa | 21800 ksi |
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.94 g/cm3 | 0.323 lb/in3 |
| Melting point | 2140°F | 1171°C |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel 70/30 Tubing from Corazon Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Corazon Pipes and Tubes, one of the largest suppliers of Copper Nickel 70/30 Tubing in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for copper nickel products in the region.
| Size (in) | Wall Thickness (in) | Outside Diameter (in) | Approx Weight (lbs/ft) |
|---|---|---|---|
| 3/8 OD | 0.049 | 0.38 | 0.2 |
| 2-1/2 | 0.38 | 2.88 | 12.1 |
| 1/4 OD | 0.035 | 0.25 | 0.1 |
| 1/4 | 0.072 | 0.54 | 0.43 |
| 1/2 | 0.120 | 0.84 | 1.1 |
| 3/8 | 0.095 | 0.68 | 0.19 |
| 1 | 0.180 | 1.32 | 2.61 |
| 1-1/4 | 0.220 | 1.66 | 2.18 |
| 3/4 | 0.148 | 1.05 | 1.71 |
| 1-1/2 | 0.25 | 1.9 | 5.25 |
| 2 | 0.340 | 2.38 | 8.85 |
| 3 | 0.46 | 3.5 | 18.7 |
Yes, we offer custom sizes for Copper Nickel 70/30 Tubing to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.

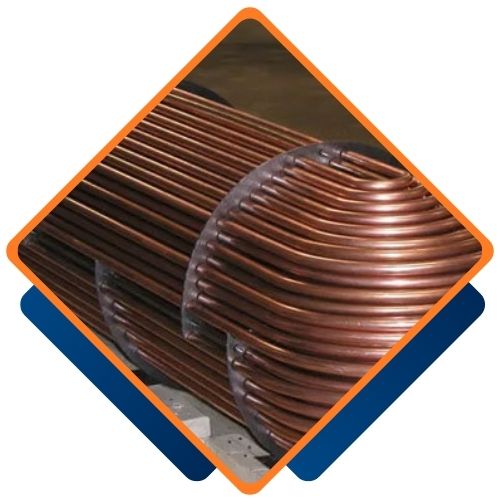

You’ll find Copper Nickel 70/30 Tubing widely used in marine, offshore, and chemical industries thanks to its remarkable resistance to seawater corrosion. It’s commonly found in desalination plants, heat exchangers, condensers, and cooling water systems. The tubing also plays a vital role in oil and gas applications, power plants, and shipbuilding for pipelines, hydraulic lines, and condensate lines. Its durability and resistance to biofouling make it perfect for long-term underwater and coastal installations. Plus, it’s a favorite in industrial systems that require hygiene and chemical resistance, delivering efficient performance, lower maintenance costs, and improved operational safety.
