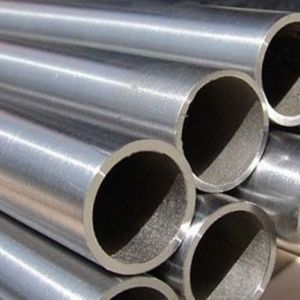

Corazon Pipes and Tubes is a reliable manufacturer and supplier located in Manila, Philippines, specializing in high-quality Stainless Steel Welded Pipes for a wide range of industrial and commercial uses. With state-of-the-art production facilities and rigorous quality control measures, the company guarantees that each welded pipe adheres to global standards for precision, durability, and resistance to corrosion. Corazon Pipes and Tubes caters to various sectors, including petrochemical, power generation, construction, food processing, and water treatment. Their Stainless Steel Welded Pipes are highly regarded for their smooth surface finish, consistent wall thickness, and outstanding performance even under high pressure and temperature conditions.
Stainless Steel Welded Pipes are made up of iron, chromium (16–20%), nickel (8–14%), along with varying amounts of molybdenum, manganese, and carbon, depending on the specific grade. These elements work together to provide exceptional corrosion resistance and mechanical strength. The pipes typically show tensile strength ranging from 500–750 MPa and yield strength between 200–300 MPa. They also boast excellent elongation and hardness properties, which help them resist scaling and oxidation at high temperatures. The combination of chromium, nickel, and molybdenum enhances their strength, ductility, and protection against pitting and crevice corrosion, making these welded pipes suitable for a variety of operating environments.
| Dimensions | ASTM, ASME and API |
| Specifications | ASTM A312, ASTM A249, ASTM A213, ASTM A268, ASTM A269, ASTM A270, ASTM A778 |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Type | ERW / Welded / Fabricated / LSAW Pipes |
| Grades | 304, 304L, 304H, 321H, 321, 316, 316L, 316Ti, 310S, 347, 347H, UNS31803 Duplex |

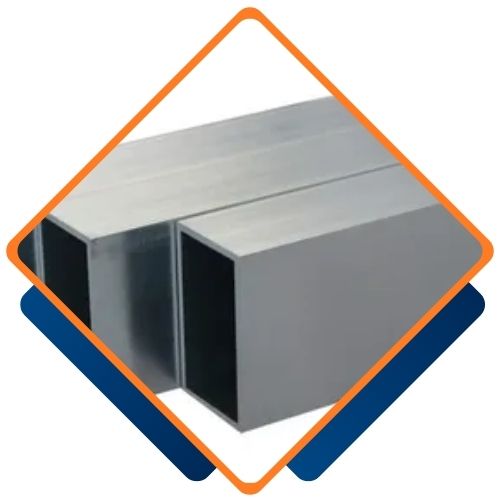

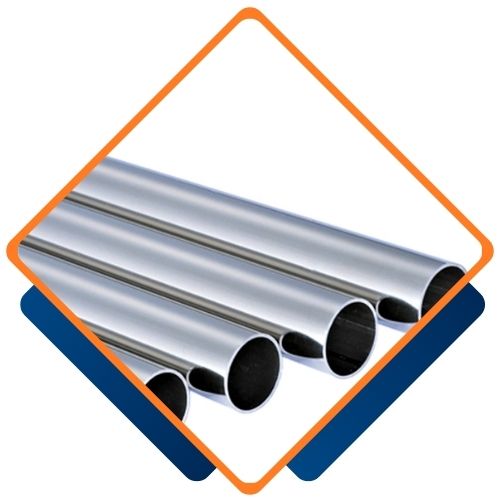

| Form | Round, Square, Rectangular, Hydraulic Etc |
| Size | 1/8” NB to 36” NB, 1/4” OD to 36” OD sizes stainless steel welded tubes also available |
| Length | Single Random, Double Random & Cut Length. |
| Thickness | 1mm to 20mm, SCH 5/5S, 10/10S, 20/20S, 40/40S, 80/80S, 120/120S, 160/160S as per ANSI B36.19/36.10 |
| End | Plain End, Beveled End, Treaded |
| Finish | No.1 Pickled Finish, No.4 finish, BA Finish, Electropolished Welded Pipes |
| Delivery Condition | Hot Finish, Cold Finish, Bright Annealed, Polished, Annealed and Pickled, Passivated, Stress Relived, As Welded, Welded & Externally Polished, Welded Annealed & Pickled, Welded Cold Drawn Annealed & Pickled, Welded Cold Drawn Annealed Pickled & Externally Polished |
| Test Reports | PMI Test Reports, EN 10204 3.1 Certificate, NABL Approved Lab Report on Chemical and Mechanical Properties, NDT or Other Test Reports, 100% X-Ray Welding Reports |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Ti | Fe | |
| 304 | min. | 18.0 | 8.0 | |||||||||
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||||
| 304L | min. | 18.0 | 8.0 | |||||||||
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.0 | 0.10 | ||||
| 304H | min. | 0.04 | 18.0 | 8.0 | ||||||||
| max. | 0.010 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | |||||
| SS 310 | 0.015 max | 2 max | 0.015 max | 0.020 max | 0.015 max | 24.00 26.00 | 0.10 max | 19.00 21.00 | 54.7 min | |||
| SS 310S | 0.08 max | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 0.75 max | 19.00 21.00 | 53.095 min | |||
| SS 310H | 0.04 0.10 | 2 max | 1.00 max | 0.045 max | 0.030 max | 24.00 26.00 | 19.00 21.00 | 53.885 min | ||||
| 316 | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316L | min. | 16.0 | 2.03.0 | 10.0 | ||||||||
| max. | 0.035 | 2.0 | 0.75 | 0.045 | 0.030 | 18.0 | 14.0 | |||||
| 316TI | 0.08 max | 10.00 14.00 | 2.0 max | 0.045 max | 0.030 max | 16.00 18.00 | 0.75 max | 2.00 3.00 | ||||
| 317 | 0.08 max | 2 max | 1 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 57.845 min | ||||
| SS 317L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 18.00 20.00 | 3.00 4.00 | 11.00 15.00 | 57.89 min | |||
| SS 321 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 5(C+N) 0.70 max | |||
| SS 321H | 0.04 0.10 | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 19.00 | 9.00 12.00 | 0.10 max | 4(C+N) 0.70 max | |||
| 347/ 347H | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 17.00 20.00 | 9.0013.00 | |||||
| 410 | min. | 11.5 | ||||||||||
| max. | 0.15 | 1.0 | 1.00 | 0.040 | 0.030 | 13.5 | 0.75 | |||||
| 446 | min. | 23.0 | 0.10 | |||||||||
| max. | 0.2 | 1.5 | 0.75 | 0.040 | 0.030 | 30.0 | 0.50 | 0.25 | ||||
| 904L | min. | 19.0 | 4.00 | 23.00 | 0.10 | |||||||
| max. | 0.20 | 2.00 | 1.00 | 0.045 | 0.035 | 23.0 | 5.00 | 28.00 | 0.25 | |||
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 304/ 304L | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 304H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 310 / 310S / 310H | 7.9 g/cm3 | 1402 °C (2555 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 40 % |
| 306/ 316H | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 317 | 7.9 g/cm3 | 1400 °C (2550 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 321 | 8.0 g/cm3 | 1457 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 347 | 8.0 g/cm3 | 1454 °C (2650 °F) | Psi 75000 , MPa 515 | Psi 30000 , MPa 205 | 35 % |
| 904L | 7.95 g/cm3 | 1350 °C (2460 °F) | Psi 71000 , MPa 490 | Psi 32000 , MPa 220 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel Welded Pipes from Corazon Pipes and Tubes ensures high quality and durability, as these pipes offer excellent corrosion resistance and strength. Our commitment to exceptional service and reliable delivery guarantees customer satisfaction across various industrial applications. Our expertise in stainless steel products ensures you receive a top-tier solution tailored to your needs.
Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel Welded Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
Yes, we offer custom sizes for Stainless Steel Welded Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.
Stainless Steel Welded Pipes from Corazon Pipes and Tubes find extensive use in industries that demand strength, cleanliness, and resistance to corrosion. They are commonly used in chemical processing equipment, oil and gas pipelines, heat exchangers, boilers, and structural frameworks. In the food and beverage sector, these pipes are favored for transporting hygienic fluids. Additionally, they are utilized in water desalination plants, the pulp and paper industry, and architectural projects, thanks to their aesthetic appeal and durability. Their strong weld integrity and smooth internal surface make them perfect for conveying fluids efficiently.
