Home > Stainless Steel > Stainless Steel Hydraulic Pipes
Nestled in the industrial heart of Manila, Corazon Pipes and Tubes stands as a trusted partner for quality steel solutions. We understand that the backbone of any robust hydraulic system is reliability, which is why we take pride in producing Stainless Steel Hydraulic Pipes that meet the highest standards. Our commitment lies in delivering not just a product, but a promise of durability and performance, ensuring your operations in the Philippines and beyond run smoother and more efficiently.

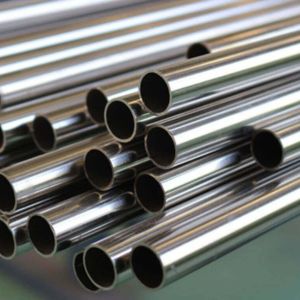

Our hydraulic pipes are crafted from superior-grade stainless steel, known for its balanced composition that inherently resists corrosion and wear. This material is engineered to possess excellent mechanical properties, including high tensile strength and the ability to withstand significant internal pressure surges. The smooth interior surface ensures minimal friction loss, allowing for efficient fluid transfer. This combination of robust construction and optimal performance makes our pipes a dependable choice for demanding environments.
| Size Range | OD 6 mm 60.3 mm |
| Standrads | EN 10216-5 TC1/TC2, ASTM A 269, PED 97/23/EC, AD 2000 , NACE MR0175 |
| Dimenisons | ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS |
| Material | SS 304, SS 304L,SS 316,SS 316L, SS 321, SS321H, SS347, Ss347H |
| Surface | bright annealed condition, and pickled + polished condition on customer’s request. |
| advantages | smooth surface, good hardness (below 80 HRB), no defects, clean inside surface, and high precision tolerances |
| Nominal Pipe Size (inches) | Outside Diameter | Hydraulic Pipe Schedule Chart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 5S | 10S | 40S | 80S | |||||||
| (mm) | (inches) | Wall Thickness and Weight | ||||||||
| mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | mm (in) | kg/m | |||
| 1/8 | 10.3 | 0.405 | – | – | 1.25 (0.049) | 0.28 | 1.73 (0.068) | 0.37 | 2.42 (0.095) | 0.47 |
| 1/4 | 13.7 | 0.540 | – | – | 1.66 (0.065) | 0.49 | 2.24 (0.088) | 0.63 | 3.03 (0.119) | 0.80 |
| 3/8 | 17.2 | 0.675 | – | – | 1.66 (0.065) | 0.63 | 2.32 (0.091) | 0.85 | 3.20 (0.126) | 1.10 |
| 1/2 | 21.3 | 0.840 | 1.65 (0.065) | 0.81 | 2.11 (0.083) | 1.00 | 2.77 (0.109) | 1.27 | 3.74 (0.147) | 1.62 |
| 3/4 | 26.7 | 1.050 | 1.65 (0.065) | 1.02 | 2.11 (0.083) | 1.28 | 2.87 (0.113) | 1.68 | 3.92 (0.154) | 2.20 |
| 1 | 33.4 | 1.315 | 1.65 (0.065) | 1.30 | 2.77 (0.109) | 2.09 | 3.38 (0.133) | 2.50 | 4.55 (0.179) | 3.24 |
| 1 1/4 | 42.2 | 1.660 | 1.65 (0.065) | 1.66 | 2.77 (0.109) | 2.69 | 3.56 (0.140) | 3.39 | 4.86 (0.191) | 4.47 |
| 1 1/2 | 48.3 | 1.900 | 1.65 (0.065) | 1.91 | 2.77 (0.109) | 3.11 | 3.69 (0.145) | 4.06 | 5.08 (0.200) | 5.41 |
| 2 | 60.3 | 2.375 | 1.65 (0.065) | 2.40 | 2.77 (0.109) | 3.93 | 3.92 (0.154) | 5.45 | 5.54 (0.218) | 7.49 |
| 2 1/2 | 73.0 | 2.875 | 2.11 (0.083) | 3.69 | 3.05 (0.120) | 5.26 | 5.16 (0.203) | 8.64 | 7.01 (0.276) | 11.4 |
| 3 | 88.9 | 3.500 | 2.11 (0.083) | 4.52 | 3.05 (0.120) | 6.46 | 5.49 (0.216) | 11.3 | 7.62 (0.300) | 15.3 |
| 3 1/2 | 101.6 | 4.000 | 2.11 (0.083) | 5.18 | 3.05 (0.120) | 7.41 | 5.74 (0.226) | 13.6 | 8.08 (0.318) | 18.6 |
| 4 | 114.3 | 4.500 | 2.11 (0.083) | 5.84 | 3.05 (0.120) | 8.37 | 6.02 (0.237) | 16.1 | 8.56 (0.337) | 22.3 |
| 5 | 141.3 | 5.563 | 2.77 (0.109) | 9.46 | 3.41 (0.134) | 11.6 | 6.56 (0.258) | 21.8 | 9.53 (0.375) | 31.0 |
| 6 | 168.3 | 6.625 | 2.77 (0.109) | 11.3 | 3.41 (0.134) | 13.9 | 7.12 (0.280) | 28.3 | 10.98 (0.432) | 42.6 |
| 8 | 219.1 | 8.625 | 2.77 (0.109) | 14.8 | 3.76 (0.148) | 20.0 | 8.18 (0.322) | 42.5 | 12.70 (0.500) | 64.6 |
| 10 | 273.1 | 10.750 | 3.41 (0.134) | 22.7 | 4.20 (0.165) | 27.8 | 9.28 (0.365) | 60.4 | 12.70 (0.500) | 81.5 |
| 12 | 323.9 | 12.750 | 3.97 (0.156) | 31.3 | 4.58 (0.180) | 36.1 | 9.53 (0.375) | 73.9 | 12.70 (0.500) | 97.4 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing stainless steel Hydraulic pipes from Corazon Pipes and Tubes ensures high-quality materials with excellent corrosion resistance and durability. Our products are tailored to meet diverse industry standards, offering reliability and versatility for various applications. Our commitment to customer service and timely delivery makes us a trusted supplier.
Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel Hydraulic Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| Material | Heat | Temperure | Tensile Strength | Yield Strength | Elongation %, Min |
| Treatment | Min. | Ksi (MPa), Min. | Ksi (MPa), Min. | ||
| º F(º C) | |||||
| TP304 | Solution | 1900 (1040) | 75(515) | 30(205) | 35 |
| GRADE | UNS NO | DIN/WERKSTOFF |
|---|---|---|
| 304 | S30400 | 1.4301 |
| 304H | S30409 | – |
| 304L | S30403 | 1.4306 |
| 310S | S31008 | 1.4845 |
| 316S | S31600 | 1.4436 |
| 316H | S31609 | – |
| 316 TI | S31635 | 1.4571 |
| 316L (2.5 MIN MOLY) | S31603 | 1.4435 |
| 316L | S31603 | 1.4404 |
| 317L | S31703 | 1.4438 |
| 321 | S32100 | 1.4541 |
| 321H | S32109 | – |
| 347 | S34700 | 1.4550 |
Yes, we offer custom sizes for Stainless Steel Hydraulic Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.
Stainless Steel Hydraulic Pipes find extensive use in industries that demand high-pressure fluid conveyance, along with corrosion resistance and durability. They’re commonly utilized in hydraulic systems for construction machinery, aerospace equipment, automotive systems, and industrial machinery. These pipes are particularly suited for oil and gas operations, chemical processing plants, and marine applications where high pressure and corrosion resistance are crucial. Additionally, they play a role in power generation, water treatment, and various other applications where reliability and performance are essential.
