Stainless Steel 904L Pipes

Home > Stainless Steel >Stainless Steel 904L Pipes

Stainless Steel 904L Pipes Manufacturer, Supplier and Exporter in Manila, Philippines

Corazon Pipes and Tubes, a reputable manufacturer and supplier located in Manila, Philippines, specializes in top-notch Stainless Steel 904L Pipes. These pipes are celebrated for their exceptional corrosion resistance and strength, making them perfect for demanding environments. At Corazon Pipes and Tubes, precision engineering, compliance with global standards, and remarkable durability are at the forefront of every product they create. Their Stainless Steel 904L Pipes find extensive use in industries that require outstanding resistance to acids, chlorides, and oxidizing agents, making them an excellent choice for critical industrial and marine applications.

904L Stainless Steel Pipes Exporter in Philippines, SS UNS N08904 Pipes Supplier in Cebu City, 904L Stainless Steel Pipe Manufacturer in West Manila, SUS 904L Pipes Price List in Philippines, ASTM A312 Stainless Steel 904L Pipe Distributor in Manila,Stainless Steel 1.4539 Pipes in Puerto Princesa, Stainless Steel TP904L Pipe Exporters in Philippines

The composition of Stainless Steel 904L Pipes includes iron, chromium (19–23%), nickel (23–28%), molybdenum (4–5%), and copper (1–2%), along with trace amounts of manganese, silicon, and carbon. This high-alloy austenitic makeup offers remarkable resistance to pitting, crevice corrosion, and stress corrosion cracking. With a tensile strength of around 490 MPa and a yield strength of about 220 MPa, these pipes also boast excellent toughness, ductility, and weldability, ensuring they deliver reliable performance over time.

Stainless Steel 904L Pipes Specification

Pipe Standard	ASTM A312 ASME SA312 / ASTM A358 ASME SA358
Pipe Dimension	ANSI/ASME B36.19M, ANSI/ASME B36.10M
Pipe Sizes	1 / 2″ NB – 24″ NB
Pipe Outside Diameter	6.00 mm OD up to 914.4 mm OD, Sizes up to 24” NB available Ex-stock, OD Size Steel Tubes available Ex-stock
Steel Pipe Manufacturing Process	Seamless / Welded / ERW / Fabricated / CDW / 100% X Ray Welded
Stainless Steel Pipe Shapes	Hydraulic, Round, Rectangle, Square, Hex, Honed
Stainless Steel Pipe Schedule	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXS, SCH XS
Pipe Ends	Half Hard, Soft, Hard, Quarter Hard, Spring Hard
Delivery Condition	Annealed and Pickled, Polished, Bright Annealed, Cold Drawn
Outside Finish	2B, No.4, No.1, No.8 Mirror Finish for Stainless Steel Pipes, Finish as per customer Requirements
Value Added Services	Cutting, Beveling, Polishing, Threading, Destructive, Non Destructive, Ultrasonic Testing

Stainless Steel 904L Pipes Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Mo	Ni	N
904L	min.	–	–	–	–	–	19.0	4.00	23.00	0.10
904L	max.	0.20	2.00	1.00	0.045	0.035	23.0	5.00	28.00	0.25

SS 904L Pipes Mechanical Properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
904L	490	220	35	70-90 typical	–

Equivalent Grades of Stainless Steel 904L Pipe

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	KS	AFNOR	EN
SS 904L	1.4539	N08904	SUS 904L	904S13	STS 317J5L	Z2 NCDU 25-20	X1NiCrMoCu25-20-5

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

ASME SA 312 TP904L Pipes Manila,Stainless Steel 904L Pipes Exporters in Philippines, 904L Stainless Steel Pipe Manufacturers in West Manila, SS UNS N08904 Pipes Supplier in Manila, SS 904L Schedule 20 Pipe Stockist in in Puerto Princesa, SS 904L Pipes Distributor in Philippines, 904L Stainless Steel Pipes in Davao City

Why Choose Stainless Steel 904L Pipes from Corazon Pipes and Tubes?

Choosing Stainless Steel 904L Pipes from Corazon Pipes and Tubes ensures the highest quality products and industry standards. Their pipe offers exceptional corrosion resistance and durability, making it ideal for demanding applications. Corazon offers a wide range of sizes and modifications to meet specific project requirements. Focusing on customer service, they ensure on-time delivery and support throughout the buying process. Their competitive pricing and commitment to quality make them a choice in the market. Additionally, Corazon’s expertise in stainless steel components ensures reliable and durable performance.

Customer Support

On Time Deliveries

Largest Inventory

Worldwide Shipping

Largest Stainless Steel 904L Pipes Supplier in Manila, Philippines

Corazon Pipes and Tubes, one of the largest suppliers of Stainless Steel 904L Pipes in Manila, Philippines, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for stainless steel products in the region.

Stainless Steel 904L Pipe Sizes in MM

Designation of Diameter		O/D	Nominal Wall Thickness
Designation of Diameter		DIA	SCH.5S		SCH.5		SCH 10S		SCH.10		SCH.20S		SCH.30		SCH.40S		SCH.40		SCH 60
(A)	(B)	Meter MM	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr	Wall Thk	Weight Kg/Mtr
6	1/8	10.3	1	0.23			1.2	0.27			1.5	0.33			1.73	0.37
8	1/4	13.7	1.2	0.37			1.65	0.49			2	0.58			2.24	0.64
10	3/8	17.2	1.2	0.47			1.65	0.63			2	0.74			2.31	0.87
15	1/2	21.3	1.65	0.01	1.65	0.81	2.11	1.02	2.11	1.02	2.5	1.15			2.77	1.29
20	3/4	26.7	1.65	1.03	1.65	1.03	2.11	1.3	2.11	1.3	2.5	1.49			2.87	1.71
25	1	33.4	1.65	1.31	1.65	1.31	2.77	2.13	2.77	2.13	3	2.24			3.38	2.54
32	11/4	24.2	1.65	1.67	1.65	1.67	2.77	2.73	2.77	2.73	3	2.9			3.56	3.44
40	11/2	48.3	1.65	1.93	1.65	1.93	2.77	3.16	2.77	3.16	3	3.35			3.68	4.11
50	2	60.3	1.65	1.93	1.65	2.42	2.77	3.99	2.77	3.99	3.5	4.9			3.91	5.52
65	21/2	73	2.11	3.75	2.11	3.75	3.05	5.34	3.05	5.34	3.5	6			5.16	8.77
80	3	88.9	2.11	4.59	2.11	4.59	3.05	6.56	3.05	6.56	4	8.37			5.49	11.47
90	31/2	101.6	2.11	5.25	2.11	5.25	3.05	7.53	3.05	7.53	4	9.62			5.74	13.78
100	4	114.3	2.11	5.93	2.11	5.93	3.05	8.5	3.05	8.5	4.5	12.18			6.02	6.32
125	5	141.3	2.77	9.61	2.77	9.61	3.4	11.74	3.43	11.74	5	16.8			6.55	2210
150	6	168.3	2.77	11.47	2.77	11.47	3.4	14.04	3.43	14.04	5.5	22.08			7.11	28.69
200	8	219.1	2.77	15	2.77	15	3.76	20.77	3.76	20.27	6.35	33.82	7.04	37.38	8.18	43.2			10.81	53.9
250	10	273.1	3.4	22.95	3.4	22.95	4.19	28.2	4.19	28.2	6.35	42.41	7.8	51.81	9.27	61.22			12.2	82.8
300	12	323.9	3.96	31.72	4.19	33.6	4.57	36.54	4.57	36.54	6.35	50.48	8.38	66.2	9.53	75.01	10.31	80.94	14.27	110.62
350	14	355.6	3.96	34.86			4.78	41.99	6.35	55.53	7.92	68.95	9.53	82.58	9.53	82.58	11.13	96	15.06	128.42
400	16	406.4	4.19	42.2			4.78	48.07	6.35	63.61	7.92	79.03	9.53	94.7	9.53	94.7	12.7	125.2	16.66	162.59
450	18	457.2	4.19	47.46			4.78	54.15	6.35	71.69	7.92	89.1	11.13	124.32	9.53	106.83	14.27	158.27	19.05	209
500	2C	508	4.78	60.23			5.54	69.7	6.35	79.76	9.53	118.93	12.7	157.51	9.53	118.9	15.06	185.89	2062	251.65
550	22	558.8	4.78	65.95			5.54	76.75	6.35	87.84	9.53	131.07	12.7	173.66	9.53	131.07	15.88	216.04	22.23	298.55
600	24	609.6	5.54	83.8			6.35	95.92	6.35	95.92	9.53	143.2	14.27	212.72	9.53	143.2	17.45	258.74	24.59	360.21
650	26	660.4							7.92	129.4	12.7	205.97			9.53	155.32
700	28	711.2							7.92	139.47	12.7	222.13	15.88	276.48	9.53	167.44
750	3C	762	6.35	120.15			7.92	149.55	7.92	149.55	12.7	238.28	15.88	296.68	9.53	179.56
800	32	812.8							7.92	159.62	12.7	254.44	15.88	316.88	9.53	191.69	17.48	348.11
850	34	863.6							7.92	169.64	12.7	270.5	15.88	336.96	9.53	203.74	17.48	370.22
900	36	914.4							7.92	179.77	12.7	286.75	15.88	357.28	9.53	215.93	19.05	427.09

Stainless Steel 904L Pipes Physical Properties

Grade	Density (kg/m3)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (m/m/0C)			Thermal Conductivity (W/m.K)		Specific Heat 0-1000C (J/kg.K)	Electrical Resistivity (n.m)
			0-1000C	0-3150C	0-5380C	at 1000C	at 5000C
904L	8000	200	15.0	–	–	13.0	–	500	850

SS 904L Schedule 40 Pipe Price List in Manila, Stainless Steel N08904 Pipes Supplier in Cebu City, SS 904L Pipes Price Per Kg, ASTM A312 Stainless Steel 904L Pipe Exporter in West Manila, AISI 904L Pipes Stockist in Manila,1 inch SS 904L Pipe Price List in Puerto Princesa, SS 904L Pipe Weight Chart, SS 904L Schedule 20 Pipe Thickness, 904L Austenitic Stainless Steel Pipe Manufacturers in Philippines

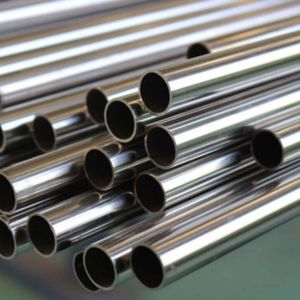

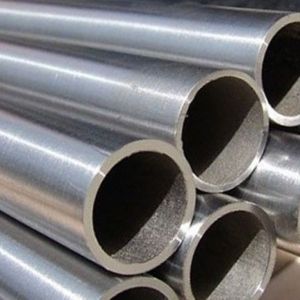

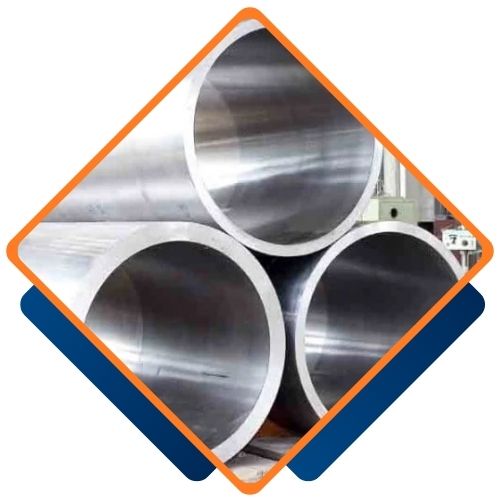

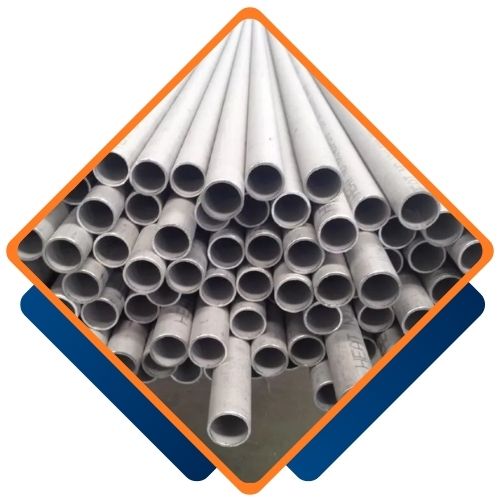

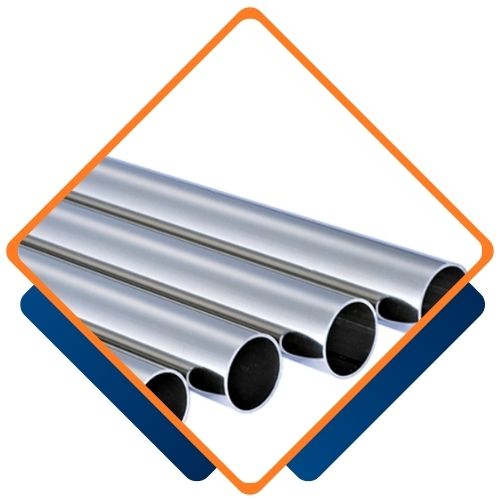

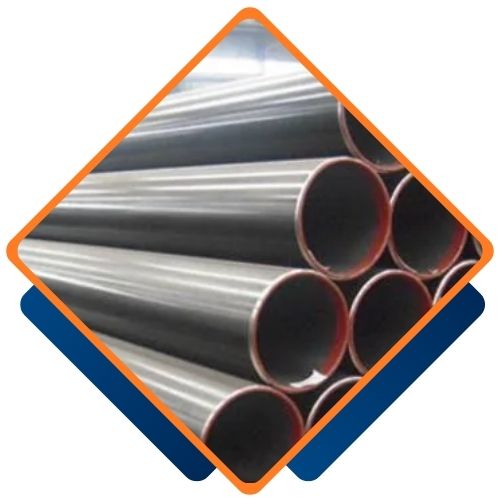

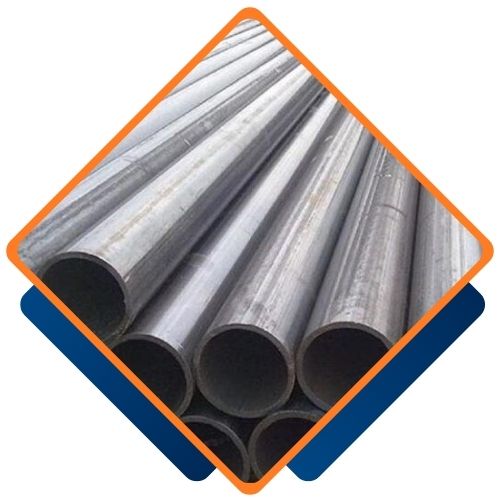

Types of Stainless Steel 904L Pipes

Are Custom Sizes Available for Stainless Steel 904L Pipes?

Yes, we offer custom sizes for Stainless Steel 904L Pipes to meet your specific requirements. Our team at Corazon Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@corazonpipes.com.

SS UNS N08904 Pipes Exporters in Puerto Princesa, ASME SA 312 TP904L Pipes Bodrum , SUS 904L Pipes Distributor in Cebu City, 904L SS Pipes Price Per Kg, 904L Austenitic Stainless Steel Pipe Supplier in Manila, SS 904L Pipe Stockist in Philippines, Stainless Steel 904L Pipes Dealer in West Manila

Stainless Steel 904L Pipes are widely utilized in chemical processing, petrochemical plants, marine industries, and pollution control equipment. They excel at transporting corrosive fluids and gases, particularly in environments with sulfuric, phosphoric, and acetic acids. Additionally, these pipes are commonly found in heat exchangers, condensers, and desalination plants due to their superior resistance to corrosion and oxidation. With their durability, low maintenance needs, and high performance, Stainless Steel 904L Pipes are the go-to choice for challenging industrial applications.
