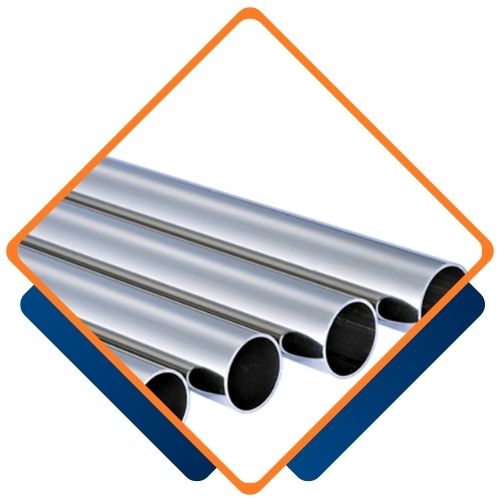

Home > Stainless Steel >Stainless Steel 904L EFW Pipes
Located in Manila, Philippines, Corazon Pipes and Tubes stands as a trusted partner in industrial materials, known for reliability and deep industry expertise. We specialize in providing high-performance solutions, and our Stainless Steel 904L EFW Pipes are a prime example of our commitment to quality. These pipes are specifically designed to perform in the most demanding environments, offering a superior solution for industries where failure is not an option. We deliver not just materials, but durable assets that ensure the integrity of critical operations.
Crafted from a special corrosion-fighting alloy, type 904L stainless steel contains higher levels of chromium, nickel, and molybdenum, plus a significant amount of copper. This unique composition gives it exceptional resistance to a wide range of acids, particularly sulfuric acid. The Electric Fusion Welding (EFW) process ensures a consistently strong and reliable pipe. This combination delivers a product that is exceptionally tough, durable, and capable of maintaining its structural integrity under high pressures and temperatures, providing long-lasting performance.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | KS |
| SS 904L | N08904 | 1.4539 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 | SUS 904L | 904S13 | STS 317J5L |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 904L | Psi – 71000, MPa – 490 | Psi – 32000, MPa – 220 | 35 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 904L EFW Pipes from Corazon Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | … |
| Specific Heat (0-100°C) | 450 | J.kg-1.°K-1 |
| Thermal Conductivity | 11.5 | W.m -1.°K-1 |
| Thermal Expansion | 15.8 | mm/m/°C |
| Modulus Elasticity | 190 | GPa |
| Electrical Resistivity | 9.52 | μohm/cm |
| Density | 7.95 | g/cm3 |
We offer custom sizes for Stainless Steel 904L EFW Pipe to meet your specific needs. Our dedicated team at Corazon Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@corazonpipes.com.
You’ll find Stainless Steel 904L EFW Pipes widely utilized in chemical and petrochemical plants, oil & gas refineries, and high-pressure fluid transport systems. They are also employed in power generation facilities, marine applications, and industrial process piping where corrosion resistance and mechanical reliability are essential. Furthermore, they are ideal for transporting acids, chemicals, and aggressive fluids in industrial systems. With their blend of mechanical strength, corrosion resistance, and high-quality EFW construction, Stainless Steel 904L EFW Pipes stand out as the perfect choice for industries that demand durability, safety, and high performance.
