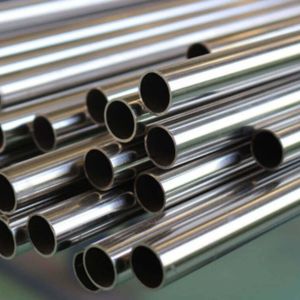

Home > Stainless Steel >Stainless Steel 310H EFW Pipes
Strategically located in the industrial heart of Manila, Corazon Pipes and Tubes has built a strong reputation as a reliable partner for critical piping solutions. We specialize in manufacturing and supplying high-performance materials, with our Stainless Steel 310H EFW Pipes standing as a testament to our commitment to durability and precision. Engineered for the most demanding environments, these pipes are crafted to provide exceptional strength and longevity, ensuring your projects benefit from a trusted and resilient supply chain right here in the Philippines.
The exceptional performance of these pipes begins with their robust composition, which features elevated levels of chromium and nickel for outstanding oxidation resistance. This alloy is further enhanced with a higher carbon content, providing superior strength and creep resistance at elevated temperatures. The Electric Fusion Welding (EFW) process ensures a seamless-like integrity in the final product, resulting in pipes that reliably maintain their structural integrity and mechanical properties even under sustained thermal stress and extreme heat conditions.
| Specification | ASTM A358 / ASME SA358 |
| Specification | A / SA358 CLASS 1, A / SA358 CLASS 2, A / SA358 CLASS 3, A / SA358 CLASS 4, A / SA358 CLASS 5 |
| Grades | 304, 304L, 304H, 309S, 310S, 316, 316L, 316H, 317L, 321, 321H, 347, 347H, 904L ETC. |
| Type | EFW, ELECTRIC FUSION WELDED |
| Outer Diameter Size | Electric Fusion Welded / ERW- 8″ NB To 110″ NB (Nominal Bore Size) |
| Wall Thickness | Schedule 10 To Schedule 160 (3 mm to 100 mm Thickness) |
| Length | 01 Meter to 12.5 Meters, Single Random Length, Double Random Length And Customize Size. |
| Ends | Plain Ends / Beveled Ends |
| Delivery Conditions | As Rolled, Formed, Stress Relieved, Annealed, Hardened, Tempered |
| Coating | Electropolish, Mechanical Polish, Satin Finish, Passivated |
| Dimension | All Pipes Is Manufactured and Inspected / Tested to the Relevant standards including ASTM and ASME |
| Value Added Services | Draw / Expansion / Machining / Sand Blasting / Shot Blasting / Heat Treatment |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden Box / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Material Test Certificate | Manufacturer Test Certificate As Per EN10204 3.1, 3.2 / Laboratory Test Certificate From NABL Approved Lab. / Under Third Party Inspection Agency Like SGS, TUV, DNV, LLOYDS, ABS ETC |
| STANDARD | UNS | WERKSTOFF NR. | JIS | BS | GOST | EN |
| SS 310H | S31009 | – | – | – | – |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 310H | 0.04 – 0.10 | 2.0 max | 1.00 max | 0.045 max | 0.030 max | 24.00 – 26.00 | – | 19.00 – 21.00 | 53.885 mi |
| Grade | Tensile Strength | Yield Strength | Elongation | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| SS 310H | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 40 | 95 | 217 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Stainless Steel 310H EFW Pipes from Corazon Pipes and Tubes guarantees excellent corrosion resistance, high strength, and durability. Designed for diverse industrial applications, it delivers reliable performance in tough environments while maintaining competitive pricing for cost-effective solutions.
| NPS Designator | Outside Diameter | Nominal Wall Thickness | ||||||||
| in. | mm | Schedule 5SA | Schedule 10SA | Schedule 40SA | Schedule 80SA | |||||
| in. | mm | in. | mm | in. | mm | in. | mm | |||
| 8 | 8.625 | 219.08 | 0.109 | 2.77 | 0.148 | 3.76 | 0.322 | 8.18 | 0.500 | 12.70 |
| 10 | 10.750 | 273.05 | 0.134 | 3.40 | 0.165 | 4.19 | 0.365 | 9.27 | 0.500B | 12.70B |
| 12 | 12.750 | 323.85 | 0.156 | 3.96 | 0.180 | 4.57 | 0.375B | 9.52B | 0.500B | 12.70B |
| 14 | 14.000 | 355.60 | 0.156 | 3.96 | 0.188B | 4.78B | … | … | … | … |
| 16 | 16.000 | 406.40 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 18 | 18.000 | 457.20 | 0.165 | 4.19 | 0.188B | 4.78B | … | … | … | … |
| 20 | 20.000 | 508.00 | 0.188 | 4.78 | 0.188B | 4.78B | … | … | … | … |
| 22 | 22.000 | 558.80 | 0.188 | 4.78 | 0.218B | 5.54B | … | … | … | … |
| 24 | 24.000 | 609.60 | 0.218 | 5.54 | 0.250 | 6.35 | … | … | … | … |
| 30 | 30.000 | 762.00 | 0.250 | 6.35 | 0.312 | 7.92 | … | … | … | |
| SS Pipes Grade | Tensile Strength, N/mm2 (min) | Yield Strength, N/mm2 (min) | Elongation, % (min) |
| TP310H | OD < 17,1 mm – 515; | OD < 17,1 mm – 205; | 35 |
| OD > 17,1 mm – 485 | OD > 17,1 mm – 170 |
We offer custom sizes for Stainless Steel 310H EFW Pipes to meet your specific needs. Our dedicated team at Corazon Pipes and Tubes provides tailored solutions for all your piping and tubing requirements. For more information, contact us at sales@corazonpipes.com.
You’ll find Stainless Steel 310H EFW Pipes commonly used in high-temperature equipment like furnaces, boilers, kilns, and incinerators, thanks to their exceptional strength and resistance to oxidation. They are also utilized in petrochemical and chemical plants, power generation systems, marine applications, and refinery units where durability and resistance to thermal cycling are essential. Furthermore, these pipes are suitable for structural and exhaust applications that demand reliable performance in harsh conditions. Their unique combination of heat resistance, corrosion protection, and EFW manufacturing makes them a top choice for challenging industrial operations.
