Home > Stainless Steel > Stainless steel 304 Welded Tubing

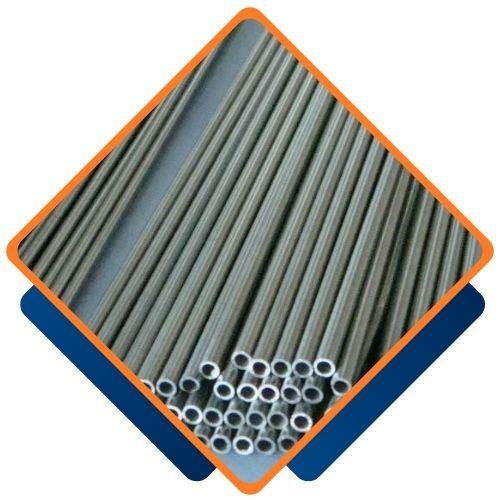

Nestled in the industrial heart of Manila, Philippines, Corazon Pipes and Tubes stands as a trusted partner in the metals industry. We specialize in providing high-quality Stainless Steel 304 Welded Tubing, crafted to meet the rigorous demands of various sectors. Our commitment goes beyond just supply; we strive to be a reliable source of durable and efficient solutions, ensuring our clients’ projects are built on a foundation of excellence and reliability.
At the heart of this material is an austenitic steel with a classic composition of 18% chromium and 8% nickel, which gives it excellent corrosion resistance. It’s not just about withstanding rust; the alloy maintains its strength across a wide range of temperatures and is easy to fabricate. This combination of toughness and workability makes it a dependable choice for so many different jobs.
| Tube Range | 1/2″ OD – 12″ OD, Guage: 25 SWG – 10 SWG |
| Outer Diameter | 3.00 mm – 219.10 mm |
| Wall Thickness | 0.40 mm – 12.70 mm |
| Schedules | 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH |
| Length | Upto 30 meters, Custom Cut Lengths |
| Specifications | ASTM A213 / ASTM SA213 |

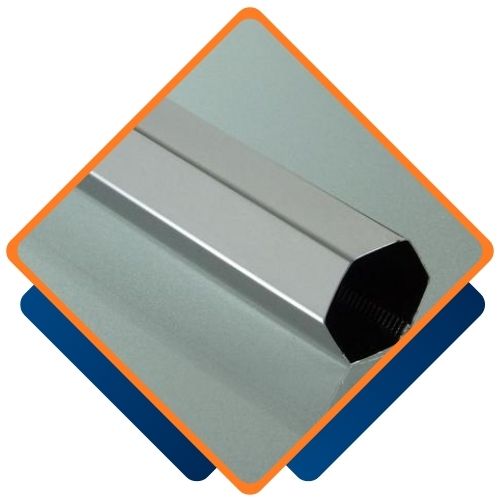

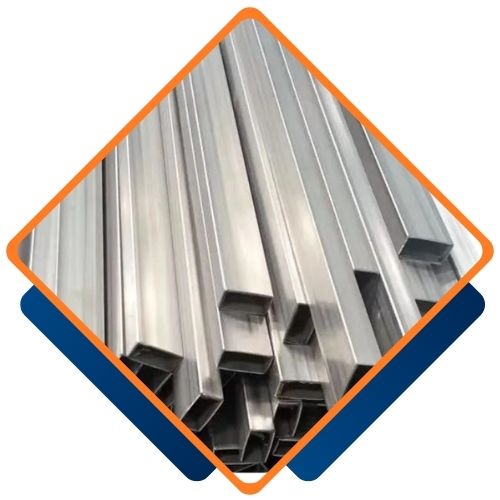

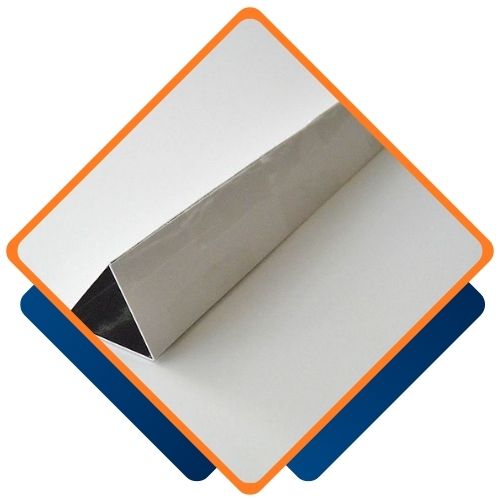

| Types | Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes |
| SS | 304 |
|---|---|
| Ni | 8 – 11 |
| Fe | Balance |
| Cr | 18 – 20 |
| C | 0.08 max |
| Si | 0.75 max |
| Mn | 2 max |
| P | 0.040 max |
| S | 0.030 max |
| Grade | 304 |
| Tensile Strength (MPa) min | 515 |
| Yield Strength 0.2% Proof (MPa) min | 205 |
| Elongation (% in 50mm) min | 40 |
| Hardness | |
| Rockwell B (HR B) max | 92 |
| Brinell (HB) max | 201 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choose Stainless Steel 304 Welded Tubing from Corazon Pipes and Tubes for exceptional corrosion resistance, superior strength and excellent durability. Ideal for a variety of industrial applications it provides outstanding performance in harsh environments. With precision manufacturing and quality assurance, we ensure reliable and durable tubing solutions.
Corazon Pipes and Tubes is the largest supplier of Stainless Steel 304 Welded Tubing in Manila, Philippines. Known for its high-quality products. We offer superior corrosion resistance, strength, and durability. Trusted by industries worldwide they provide reliable precision-engineered tubing for various applications and project needs.
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||

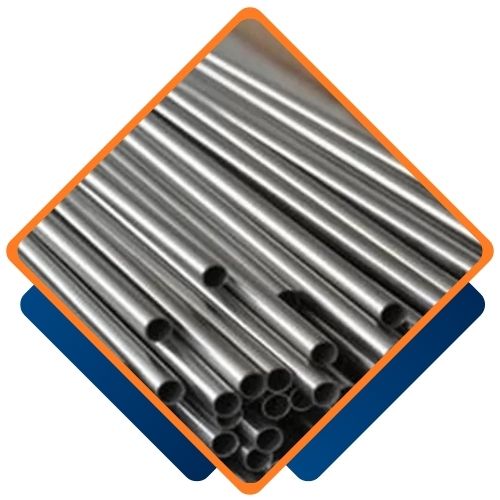

| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304 | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Yes, Corazon Pipes and Tubes offer large custom designs for Stainless Steel 304 Welded Tubing. With design, wall thickness and length. Their adjustable options ensure the tubing meets specific application requirements. This flexibility makes it more efficient and reliable for different industries and environments. For more details, contact us at sales@corazonpipes.com.

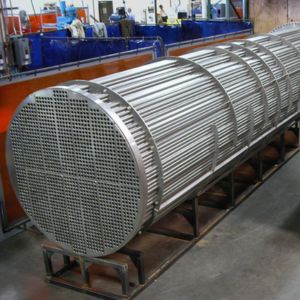

You’ll find Stainless Steel 304 Welded Tubing commonly used in heat exchangers, boilers, condensers, and piping systems where corrosion resistance and precision are essential. It’s also utilized in chemical and petrochemical plants, food and beverage processing, pharmaceutical sectors, and marine environments. Furthermore, it’s ideal for structural frameworks, HVAC systems, water treatment facilities, and other industrial applications that require long-lasting reliability and strength. With its excellent weldability, corrosion resistance, and mechanical performance, Stainless Steel 304 Welded Tubing stands out as a fantastic choice for both industrial and commercial needs.
